产品介绍

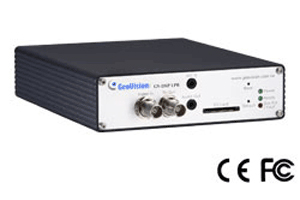

GV-DSP LPR comes as a Linux-embedded DSP system in a compact box. Its light weight also comes with high accuracy license plate recognition characteristics. The plug-and-use feature and the user friendly interface make it easy to install and configure. Designed for long distance, high mobility or outdoor monitoring purposes, GV-DSP LPR uses LPR/ANPR camera video as input signals and outputs the recognition results, captured images and live video through TCP/IP to the GV-LPR and GV-LPR Center. Integration with third party applications is possible thanks to the SDK.
产品特点
- Linux-based solution for 1 port traffic or mobile license plate recognition
- Cutting edge neural network technology recognition kernel
- Wide operating temperature range
- SD card storage to prevent data loss in case of network disconnection
- Auto offline backup to save valuable license plate data
- Web interface for setup, live viewing and firmware upgrade
- Recognition triggered by motion detection or I/O device
- Fully integrable with GV-LPR and GV-LPR Center
- Recognition results, images and live video integrable with other systems through OCX SDK
- Digital watermark
- Hardware watchdog
产品规格
| Specifications | |
| Connectors | 1 Video Input, 1 Video Output, 1 Audio Input (Reserved), 1 Audio Output (Reserved) |
| RJ45 10/100Base-T, USB2.0, SD Card | |
| 4 Digital Input, 4 Digital Output, RS-485 | |
| Protocol | HTTP, TCP, UDP, DHCP, NTP, DynDNS |
| Operation Temperature | -20~70°C / -4 ~158°F |
| Dimension (W x D x H) | 174 x 145 x 40 (mm) / 6.85 x 5.71 x 1.57 (in) |
| Weight | 0.75 Kg / 1.65 lbs |
| Country Support | Australia, Austria, Brazil, Belgium, China, Columbia, Cyprus, Czech Republic, Germany, Hungary, Ireland, Israel, Mexico, Norway, Poland, Portugal, South Africa, Spain, Taiwan, UAE, UK |
