产品介绍
FULL - FUNCTIONALITY:
One controller controls all devices, This product is compatible with all our PTZ cameras, DVR and door access control.
产品特点
- Controls up to 64 devices through one keyboard controller (Devices such as the PTZ camera, DVR and door access control...etc.)
- User-friendly button placement & LCD touch panel (128 * 64 pixels) for easy operation
- Network upgrade function to get advanced functions
- Supports Multi-protocols
- Password protection to prevent unauthorized intruder
- Built-in microphone for broadcast function
产品规格

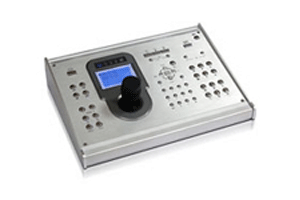

| Model | AVP101 |
| Device Control | PTZ camera, DVR and door access control...etc. |
| Remote Control | RS-485 |
| Protocol | Yes |
| Baud Rate | 2400 ~ 115200 |
| LCD Display | 128*64 |
| Ethernet Port | 10/100 Base-T |
| External I/O Port | 9 Pin D-Sub |
| Input Voltage | DC12V |
| Power Consumption | < 2W |
| Operating Temperature | 0°C ~ +40°C |
| Operating Humidity | < 95% |
| Dimension (mm) | 380 (W) x 180 (H) x 95 (D) |
