产品介绍

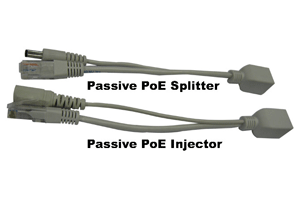

Compared with traditional cabling for network cameras, this kit allows users to transfer electrical power and data to remote devices over only one cable in an Ethernet network. It is useful for our network camera series without extra cabling and modification of existing Ethernet cabling infrastructure, and it's easy for setup.
产品特点
- One network cable only to transfer both power and data and reduce the wiring cost
- No need to purchase expensive PoE special equipment
- Low price, handy setup, and easy to use
产品规格
| Model | PWAC08 |
| Input voltage | 5V~57V |
| Maximum current load | 800mA |
| DC output/Input terminal specification | ψ5.5*2.1 |
| Maximum transfer rate | 100M bits/sec |
| Maximum transfer distance** | under 350mA: 30M 350mA~500mA: 20M over 500mA: 10M |
| Operating temperature | 0°~ 40° |
| Storage temperature | -40°~ 70° |
| Operating humidity | 10% to 80% RH |
| Storage humidity | 5% to 90% RH |
